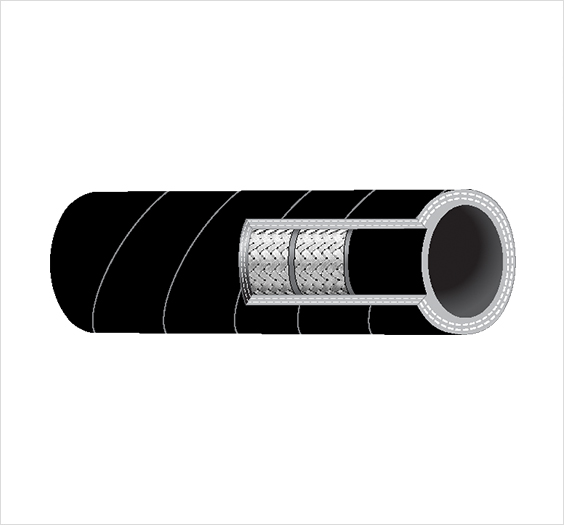

R2 High Pressure Hydraulic Hoses
SAE – 100 R2 / EN 853 2SN / DIN 20022 2SN
Specifications
Conforming to Std. SAE – 100 R2
Construction
Tube : Seamless oil resistant
Reinforcement : Two braids of HTS wire
Cover : Oil, Weather & Abrasion resistant
Temperature : (-40°C) to 120°C
Couplings : Swaged or Crimped or Reusable type
Application
For high pressure hydraulic oils, fuel, lubricating oils, water and air.
I.D. Inches
I.D. mm
O.D. mm
Working Pressure psi
Test Pressure psi
Minimum bend radius mm
3/16
4.8
14.1
5000
10000
89
1/4
6.4
15.7
5000
10000
102
5/16
7.9
17.3
4250
8500
114
3/8
9.5
19.7
4000
8000
127
1/2
12.7
23.1
3500
7000
178
5/8
15.9
26.3
2750
5500
203
3/4
19.0
30.2
2250
4500
241
7/8
22.2
33.4
2000
4000
279
1
25.4
38.9
2000
4000
305
11/4
31.8
49.6
1650
3250
419
11/2
38.1
56.5
1250
2500
508
2
50.8
68.6
1125
2250
635
